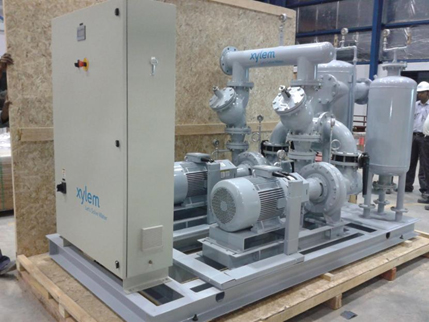

We have complete HVAC pumps like cooling tower application pumps, condensate water extraction pumps, primary and secondary chilled water pumps, booster pumps ,Brine circulation pumps, process water pumps, hot water pumps, vertical inline pumps, vertical inline complete skids, horizontal compact pumps skids.

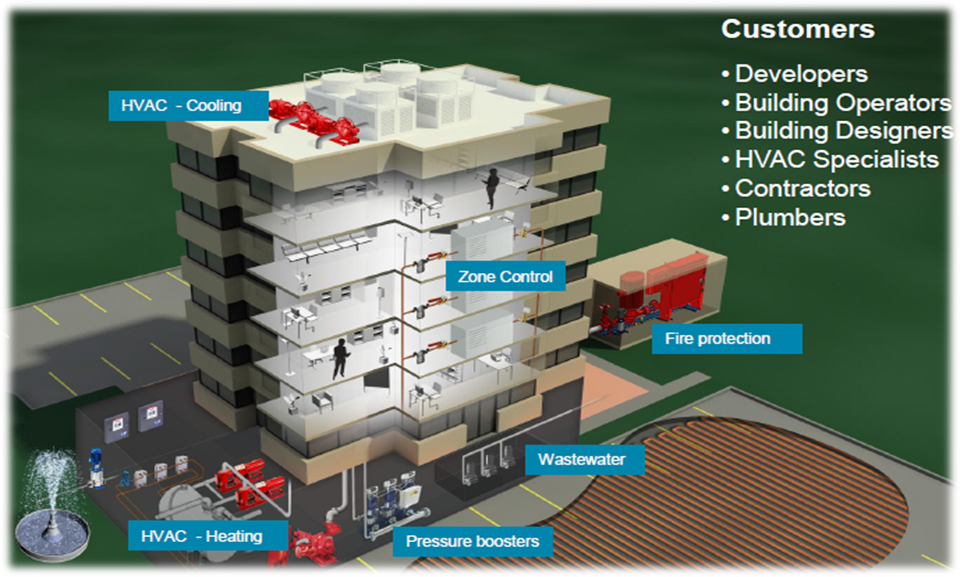

We supply single window solution-all application pumps valves, HVAC Hydronics, Plumbing, Fire Process for building sector & industry sector. Providing Innovative Solutions to Global Water Challenges-energy efficient products.

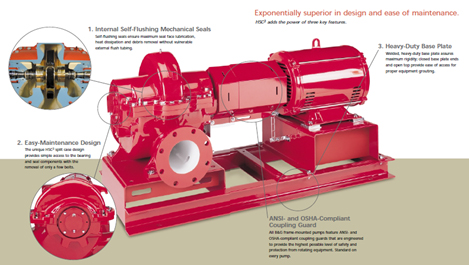

A B&G standard in design and construction. Ease in service is assured, while piping and motor remain undisturbed. Extended delays for repairs are virtuality eliminated.
This design is way ahead of its time. This unique seal design is proven in many years of service. It required no special external flushing provisions, since the design provides for constant efficient flushing action internally.
This standard feature ensures maximum seal face lubrication, heat dissipation and debris removal without vulnerable, external flush tubing. The internal flushing action passes two and a half to three times the flow over the seal faces- compared to a few GPM for conventional, stuffing-box designed pumps.
1510 impellers are balanced to HI/ANSI 1.1-1.5-1994 section 1.4.6.1.3.1, balance grade G6.3 standards. This method of computer balancing Impellers provides for quiet, efficient, vibration free performance. Diameters are computer selected at the factory to furnish assurance that your capacity requirements will be met.

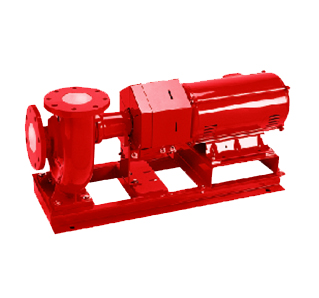

The Bell & Gossett fabricated heavy duty baseplate is supplied as standard on every series 1510 pump. Unlike rolled steel and "C" channel baseplates, the Series 1510 baseplate provides a heavy duty saddle assembly, full seam welds, closed baseplate ends and an open top to provide ease of access for proper equipment grouting.
All Series 1510 pumps are provided as standard with an integrally cast volute foot located directly beneath the pump volute. This integrally cast foot ensures that the alignment between the volute and motor assembly is maintained. Without solid support beneath the volute, the piping weight alone will cause distortion which can lead to premature failure of the bearings, shaft and mechanical seal. This feature is equally important on hot water applications. The Series 1510 volute foot provides a solid foundation and eliminates the deflections which would otherwise exist within an unsupported overhung volute during the normal thermal expansion of the system piping against the volute.
Unlike conventional jaw type or rigid style couplings, a center drop-out spacer coupling allows removal of the bearing frame and rotating element without disturbing the pump and pipe alignment or motor electrical connections.
The coupler guard complies with ANSI B15.1, Section 8 and OSHA 1910.219. The guard offers increased protection against potential injuries and is standard on all 1510 pumps. The guards include slotted viewing windows for easy inspection.
